Steve Mann, and Robert Guerra
Assistant Mailroom Clerk EXISTech Corporation
284 Bloor Street West, Suite 701, Toronto, Ontario, M5S 3B8
Keywords Protection of human rights, Accountability, Self demotion, Self bureaucratization, Personal Imaging, Augmented Reality (AR), Mediated Reality, Human Rights, Witnessential Network.
startsection email@example.com plus 1ex minus .2ex.2ex plus .2exIntroduction: The need for Witnessential Computing There have been previous attempts to equip Human Rights workers with hand-held cameras so that they can document violence, and many of these attempts have even been backed with massive corporate funding:
We began when Amnesty International invited us to be the sole sponsor of Human Rights Now!, a 1988 world concert tour which reached millions of young people on five continents. ...In partnership with musician Peter Gabriel and the Lawyers Committee for Human Rights we founded Witness, a program that equips frontline activists with hand-held video cameras to document human rights abuses.www.reebok.com/about_reebok/human_rights/home.html
Unfortunately, in many situations, the mere presence of a video camera results in immediate violence directed to a person with a camera. Thus hand-held cameras often serve to provoke rather than deter violence.
This violence directed at camera operators is almost globally universal, and can be observed in nearly any country. The author(s) have observed that when trying to use a camera to collect evidence of wrongdoing, that even otherwise mild mannered clerks will sometimes jump over a counter and punch a camera operator in the face, knocking the camera to the ground. Even in countries like Canada which is said to have a very good Human Rights record (Canada's first place standing in the UN Development Index ), camera operators have been physically assaulted and unlawfully detained for merely using a hand-held camera to collect evidence of wrongdoing. (See for example, some of the mpeg movies linked from http://wearcam.org/shootingback.html)
Additionally, the use of cameras can sometimes actually intensify violence that is already present, when the explicit use of cameras angers the authorities or other perpetrators of this violence.
startsection subsection2@.2ex plus 1ex .2ex plus .2exsetsizesubsize12ptxiptIncidentalist image capture Over the last 30 years, we had been developing wearable cybernetic personal imaging systems that overcame many of the limitations of the more recent approaches taken by organizations distributing hand-held video cameras to human rights workers, apparently unaware of our previous work.
For example, it was found that officials who reacted violenty to hand held cameras, did not seem to mind at all when being captured using an EyeTap device (wearable cybernetic personal imaging system) transmitting realtime video to the Internet. (See Fig 1.)
Some people have tried to explain this phenomenon by merely stating that the perpetrators did not know that the EyeTap device has camera-like properties, or even what the EyeTap device was.
Thus a series of experiments were conducted in which it was made very obvious that the EyeTap device was transmitting live video .
This was done by attaching a very large flat screen television to the body (http://wearcam.org/weartv.htm) and having it running a web browser, mirroring images from the website that's receiving the signals from the EyeTap device.
To make it even more obvious it was transmitting, a flashing red light, and flashing indicia bearing terms such as ``REC." (the common abbreviation for ``record'' regardless of language), were included together with making the transmitting antenna more obvious, and having words like ``LIVE BROADCAST'' (in the appropriate language of the country where used) flash across the screen in large letters.
A freeze frame effect was also used, so that the otherwise would-be perpetrator could see his face on the television screen in larger-than-life size.
Moreover, in case would-be perpetrators might not have believed that the devices were actually capable of transmitting video, some experiments/performances were done with one person wearing a transmitting device, and another person receiving the images and browsing them on a wearable web browser to show to the subject of the experiment or performance.
For example, in some situations, the web browsers were shown to high level officials (such as the director of security) in an establishment where photography was strictly prohibited. When blatantly showing such officials pictures of themselves received on portable web browsers, it was, quite surprisingly, found that approximately 9 times out of 10, the officials did not object to having their pictures taken, even when it was explained to them that these pictures were being transmitted onto the Internet and backed up in several different countries around the world.
Additionally, various performances and experiments were conducted using devices having varying degrees of obviousness, and varying degrees of camera-like appearances, as shown in Fig 2.
These situations seldom resulted in violence, even though the image capture was made very obvious.
Although the results varied slightly from one country to another, there was enough consistency that the findings of these experiments/performances suggest that in addition to covert wearable image capture devices, that a more overt and obvious form of image capture device, as well as conspicuously concealed devices may be useful as a new form of civil disobedience. Such is the role of the international day of protest against video surveillance, World Subjectrights Day (http://wearcam.org/wsd.htm) held every December 24th.
When engaging in such acts of civil disobedience (or wearing the ``maybecameras'' of Fig. 2), it is preferable that large numbers of persons participate so that certain individuals are not singled out as victims of state-sponsored terrorism.
startsection subsection2@.2ex plus 1ex .2ex plus .2exsetsizesubsize12ptxiptCan humans being clerks make clerks be human? The inherent and fundamental assymetry that an individual encounters when reacting against (or documenting the autrocities of) a police state is the fact that the members of the police state assume the role of clerks who can say ``we were just following orders'' whereas the individual person acts (or is seen to act) of his or her own free will.
This situation is better understood with reference to figures depicting an individual interacting with a clerk.

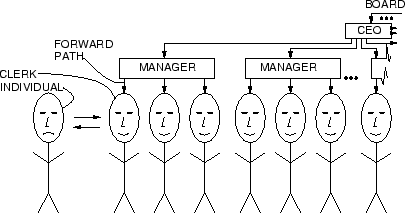

Figure 3 illustrates an individual interacting with a clerk who either is, or pretends to be, under the control of a manager who either is, or pretends to be under the control of a chief executive officer, who either is, or pretends to be, under the control of a board of directors, etc..:
Not all of us regularly encounter systematic violence, such as torture or mass murder, in our daily lives. A more common kind of situation many of us might encounter, that illustrates the principle of Fig 3 is when a person tries to negotiate with a used car salesman, and the used car salesman might say something like ``I'd love to give you the car for one thousand dollars; let me check with my manager''. The used car salesman then disappears into a back room, has a coffee, and reads a newspaper for a few minutes, and then comes out and says ``I'd love to give you the car for one thousand dollars but my manager won't let me.''. Although the salesman never talked to a manager, the salesman has some degree of power over the customer by virtue of being able to credibly pretend that he is bound by a higher authority. A credible, articulable, higher and unquestionable authority allows representatives of organizations to obtain external blame and excuses for their otherwise irrational or disagreeable actions.
Unfortunately the individual person does not ordinarily enjoy the same luxury as the clerk, and must therefore behave more rationally, or risk seeming irrational, rude, or otherwise inappropriate. For example, if an individual carried a handheld video camera around videotaping clerks, casino operators, police officers, customs officials, and the like, the individual might be regarded as strange, rude, or otherwise acting in an inappropriate manner.
The individual could rely on religion, as a manager, by, for example, wearing a camera contraption as part of a religious order. Just as religion allows individuals to wrap their heads in various materials that would otherwise be regarded as inappropriate, a new religion such as the ``personal safety religion'' could be invented, that required its members to wear cameras.
Thus religion could form a similar purpose to the manager for the individual, but there is the danger that others (including clerks) may dismiss the individual as a religious fanatic. Therefore, what is needed is a similar way for the individual to have excuses for and to externalize blame for otherwise irrational or disagreeable actions. Alternatively, artistic freedom is useful in this regard. For example, the piece depicted in Fig 2(d) was worn in numerous places where photography was prohibited, as part of a week long internationally popular performance at Ars Electronica in September 1997 (http://wearcam.org/ars/index.html).
An important aspect of the Witnessential Network is for the individual to be able to nonconfrontationally inflict fear of accountability, uncertainty, or doubt on persons exerting physical or other coercive force, or the threat or possibility thereof, upon the user of the invention. This can be done by way of an incidentalist imaging possibility. In particular, a collegial form of disobedience to authority, in the form of what is, or appears to be, an incidentalist act, can be generated where an overtly certain act of disobedience would be forbidden.
Incidentalist imaging refers to imaging which can be made to seem as if it occurs merely by chance or without intention or calculation. An incidentalist imaging system may in fact blatantly capture images (as by an articulable requirement from a higher authority to do so), or it may present itself as a device that could capture images in a way in which it is difficult to discern the intentionality of the use of the invention.

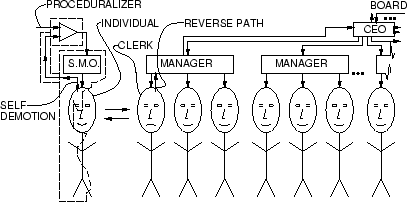

In addition to incidentalism, another similarly desirable property for minimization of confrontation with would-be perpetrators is self-demotion: figure 4 illustrates the situation of a wearable computer user who is able to either be, or pretend to be, under the control of a Safety Management Organization (SMO).
Ordinarily there would be no such back channel, or the back channel would be reduced. For example, if an INDIVIDUAL complains about video surveillance systems in use by a CLERK, then the CLERK will simply refer the INDIVIDUAL to management, and management will be likely only available on certain limited hours, and after waiting extensively and being held up and delayed in line extensively. Then management will likely say the directive for use of surveillance comes from head office, and refer the INDIVIDUAL to a head office, where the INDIVIDUAL will spend several hours waiting on hold and calling various telephone numbers, etc.. The head office will then often say that the surveillance is used because the insurance company requires it.
However, if the INDIVIDUAL takes out his or her own personal handheld camera and photographs the CLERK, indicating that the SMO requires it, a very fast back channel (REVERSE PATH) will arise. Quite often the MANAGER of the CLERK will immediately become available, and the INDIVIDUAL will no longer have to wait in line or come back on a certain special day to talk to the manager. The matter will rapidly escalate to the highest available level of authority.
The Witnessential Network has a symmetrizing effect in which the individual and manager either snap out of their respective roles, or a back channel is forced, disrupting the normally one-way nature of the control flow from the top-down of management to the CLERK. Thus the INDIVIDUAL demoting themselves to CLERK forces the other CLERK to become an INDIVIDUAL accountable human and make responsible decisions outside the scope of just being a clerk.
In addition to an SMO, the INDIVIDUAL can also choose to be bound by (or to pretend to be bound by) an SMO that is itself bound by a higher authority such as an insurance company. Thus, in one embodiment, the INDIVIDUAL could, for example, take out a life insurance policy that required him to wear a personal safety device that recorded video at all times.
Thus the life insurance company provides the individual with a means for articulably externaizing his own irrational actions. Now the individual can say ``I'm wearing this camera because my manager (SMO) requires it, and the insurance company requires the SMO to require me to wear it'', etc..
Preferably, in the experimental apparatus, a PROCEDURALIZER is used to allow the individual to follow, or to appear to follow, a prescribed procedure without appearing to be thinking for himself or herself. The lack of apparent individual thought or intentionality, allows the individual to become or seem to become a clerk, which is what forces the CLERK to be human in being forced to think and make decisions for himself or herself.
An extreme example appears in Fig 5.
Moreover, self-demotion can occur internally without the need for an external manager. An example of such a system, as shown in Fig 2(b), uses heart ECG electrodes, respiration sensors, and the like, to control the video capture process. In this way, the wearer can deny having any control over the process. Images are only captured when heart rate or sweatiness index exceeds a certain threshold, compared to motion as sensed by the device.
If the wearer is being harassed by a prospective terrorist, the terrorist has only himself to blame for inducing the image capture by causing the wearer to be sweaty and her heart to beat more quickly.
startsection firstname.lastname@example.org plus 1ex minus .2ex.2ex plus .2exProperties of the Witnessential Network A series of experiments and performances conducted over a twenty year period from 1981 to 2001, building more than a hundred different kinds of wearable photographic apparatus, and wearing them in many different countries around the world, culminated in a conceptual framework for the Witnessential Network:
Indeed, a lack of received picture signal could indicate non-observance of agreed-upon monitoring, and should therefore be considered at least equal to a violation of human rights. (Perhaps this concept could be written into the standard declaration of human rights, http://www.un.org/Overview/rights.html.)
startsection subsection2@.2ex plus 1ex .2ex plus .2exsetsizesubsize12ptxiptFear of Functionality A direct result of Edgertonian sampling is that a single picture from a picture sequence has a high degree of relevance and meaning even when it is taken in isolation.
Similarly, a direct result of Picture Transfer Protocol (PTP) is that a single packet from a packet sequence has a high degree of relevance and meaning even when it is taken in isolation (for example when the packets before and after it have been corrupted).
It is therefore apparent that if a system were made serendipitous, even if doing so made the system highly unreliable, to the extent that pictures could only be transmitted occasionally, but really well unpredictably, then the Edgertonian sampling combined with PTP would provide a system that would degrade gracefully.
Indeed, if we were to randomly select just a few frames from one of Harold Edgerton's motion pictures, we would likely have a good summary of the motion picture, since any given frame would provide us with a sharp picture in which subject matter of interest could be clearly discerned. Likewise, if we were to randomly select a few packets from a stream of thousands of packets of PTP, we would have data that would provide a much more meaningful interpretation to the human observer than if all we had was randomly selected packets from an MPEG sequence.
Personal Imaging systems are characterized by a wearable incidentalist ``always ready'' mode of operation in which the system need not always be functioning to be of benefit. It is the potential functionality, rather than the actual functionality of such a system that makes it so different from other imaging systems like hand held cameras and the like.
Accordingly, an object of the Personal Imaging project is to provide a system that transmits pictures in harsh or hostile environments. One such application of such a system is the Personal Safety Device described in .
The Personal Safety Device differs from other wireless data transmission systems in the sense that it was designed for ``Best Case'' operation. Ordinarily, wireless transmissions are designed for worst case scenarios, such as might guarantee a certain minimum level of performance throughout a large metropolitan area. The Personal Safety Device, however, is designed to make it hard for an adversary to guarantee total nonperformance.
It is common that state-sponsored terrorists use electronic devices to jam radiowaves, allegedly to prevent independent terrorists from activating explosives by radio remote control, or the like. Another effect, whether intended or not, is to adversely affect traditional personal safety devices such as cellular telephones. Therefore, a system is needed to potentially send the radio signals for personal safety and accountability.
Rather than traditional anti-jamming and frequency hopping technologies, the Witnessential Network makes use of serendipitous communications.
It is not a goal of the Personal Safety Device to guarantee connectivity in the presence of hostile jamming of the radio spectrum, but, rather, the goal is to make it difficult for the adversary to guarantee the absence of connectivity. Therefore, an otherwise potential perpetrator of a crime would never be able to be certain that the wearer's device was non-operational and would therefore need to be on his or her best behavior at all times.
Traditional surveillance networks, based on so-called ``public safety'' camera systems have been proposed to reduce the allegedly rising levels of crime. However, building such surveillance superhighways may do little to prevent, for example, crime by representatives of the surveillance state, or those who maintain the database of images. Human rights violations can continue, or even increase, in a police state of total state surveillance. The same can be true of owners of an establishment where surveillance systems are installed and maintained by these establishment owners. Examples such as the famous Latasha Harlins case in which a shopper, falsely accused of shoplifting by a shopkeeper, was shot dead by the shopkeeper . Therefore what is needed is a Personal Safety Device, to function as a crime deterrent, particular with regards to crimes perpetrated by those further up the organizational hierarchy.
Since there is, and would be, the possibility of just one packet, which contains just one picture, providing incriminating evidence of wrongdoing, an individual can simply wear a personal safety device to obtain protection from criminals, assailants, and attackers, notwithstanding any alleged public or corporate video surveillance system already in place.
An important aspect of this paradigm is the Fear of Functionality (FoF) model. The balance is typically tipped in favour of the state or large organization, in the sense that state owned, or corporate owned surveillance cameras are typically mounted on fixed mount points, and networked by way of high bandwidth land lines. The Personal Safety Device (PSD), on the other hand, is connected by way of wireless encrypted  communication channels of limited bandwidth and limited reliability. For example, in the basement of a department store, the individual has a lesser chance of getting a good reliable data connection than the store-owned surveillance cameras. Just as many department stores use a mixture of fake nonfunctional cameras and real ones, so that the customer never knows whether or not a given camera is operational, what is needed is a similar means of best case video transmission. Not knowing whether or not one is being held accountable for one's actions, one must be on one's best behavior at all times. Thus a new philosophy, based on FoF, can become the basis of design for image compression, transmission, and representation.
A new approach, however, reverses this argument, by regarding functionality as a bad thing -- bad for the perpetrator of a crime -- rather than a good thing. Thus we turn the whole graph on its head, and looking at the problem in this reversed light, come to a new solution, namely that SYSTEM ``B'' is better because there are times when it works really well.
Imagine, for example, a user in the sub basement of a building, inside an elevator. Suppose SYSTEM ``A'' would have no hope of connecting to the outside world. SYSTEM ``B'', however, through some strange quirk of luck, might actually work, but we don't know one way or the other, in advance.
The fact of the matter is, however, that one who was hoping that the system would not function, would be more afraid of SYSTEM ``B'', than SYSTEM ``A'', because it would take more effort to ensure that SYSTEM ``B'' would be nonfunctional.
The Fear of Functionality (FoF) model means that if there exists the possibility that the system might function part of the time, so that a would-be perpetrator of a crime against the wearer of the personal safety device must be on his or her best behavior at all times.
Fig 6(b) depicts what we might do to further improve the ``fear factor'' of our SYSTEM ``B'', to arrive at a new SYSTEM ``''. The new SYSTEM ``'' is characterized by making it even more idiosyncratic, such that the occasional time that SYSTEM ``'' works, it works really well, but most of the time it doesn't work at all, or works very poorly.
Other technologies, such as the Internet, have been constructed to be robust enough to resist the hegemony of central authority. However, an important difference here is that the FoF paradigm is not suggesting the design of robust networks. Instead, the FoF paradigm may suggest the opposite of robustness, in the sense that SYSTEM ``'' is even more sensitive to mild perturbations in the parameter space about the optimal operating point, , than SYSTEM ``B''. In this sense, our preferred SYSTEM ``'' is actually much less robust than SYSTEM ``B''. Clearly it is not robustness, in and of itself, that the author is proposing here.
The personal safety device need not work constantly, but, rather, must simply present criminals with the possibility that it could work sometimes, or even just occasionally. This scenario forms the basis for best-case design as an alternative to the usual worst-case design paradigm.
The Personal Imaging system therefore transmits video, but the design of the system is such that it will, at the very least, occasionally transmit a meaningful still image.
This rethinking extends from the transforms and compression approach right down to the physical hardware. For example, typically the wearer's jacket functions as a large low frequency antenna, providing transmission capability in a frequency band that is very hard to stop. For example, the 10 meter band is a good choice because of its unpredictable performance (owing to various ``skip'' phenomena, etc.). However, other frequencies are also used in parallel.
For example, a peer to peer form of infrared communication is also included, to ``infect'' other participants with the possibility of having received an image. In this way, it becomes nearly impossible for a police state to suppress the signal, because of the possibility that an image may have escaped an iron-fisted regime.
It is not necessary to have a large aggregate bandwidth to support an FoF network. In fact, quite the opposite.
Since it is not necessary that everyone transmit everything they see, at all times, very little bandwidth is needed. It is only necessary that anyone could transmit a picture at any time. This potential transmission (e.g. fear of transmission) need not even be to the Internet, e.g. it could simply be from one person to another to another person.
startsection subsection2@.2ex plus 1ex .2ex plus .2exsetsizesubsize12ptxiptVerification of witnessential integrity Cryptographic signatures are used to authenticate , time-stamp, and append heart rate, GPS, electronic compass info, etc., to the image header.
Additionally, a remote authentication committee certifies at least the time beyond which the images were produced, for example, that an image was sent within a sixtieth of a second after an event, so it can be thus assumed that it would have been very difficult to falsify an image within a sixtieth of a second.
In the very likely event of hostile jamming by well-equipped state-sponsored terrorists, images may be sent from one participant to the next, so that images still tend to spread locally among participants. Even if the image is passed to numerous participants, the original individual who captures the image signs it, thus granting a degree of credibility to the image and allowing the authentication committee to trust the authenticity of the image.
